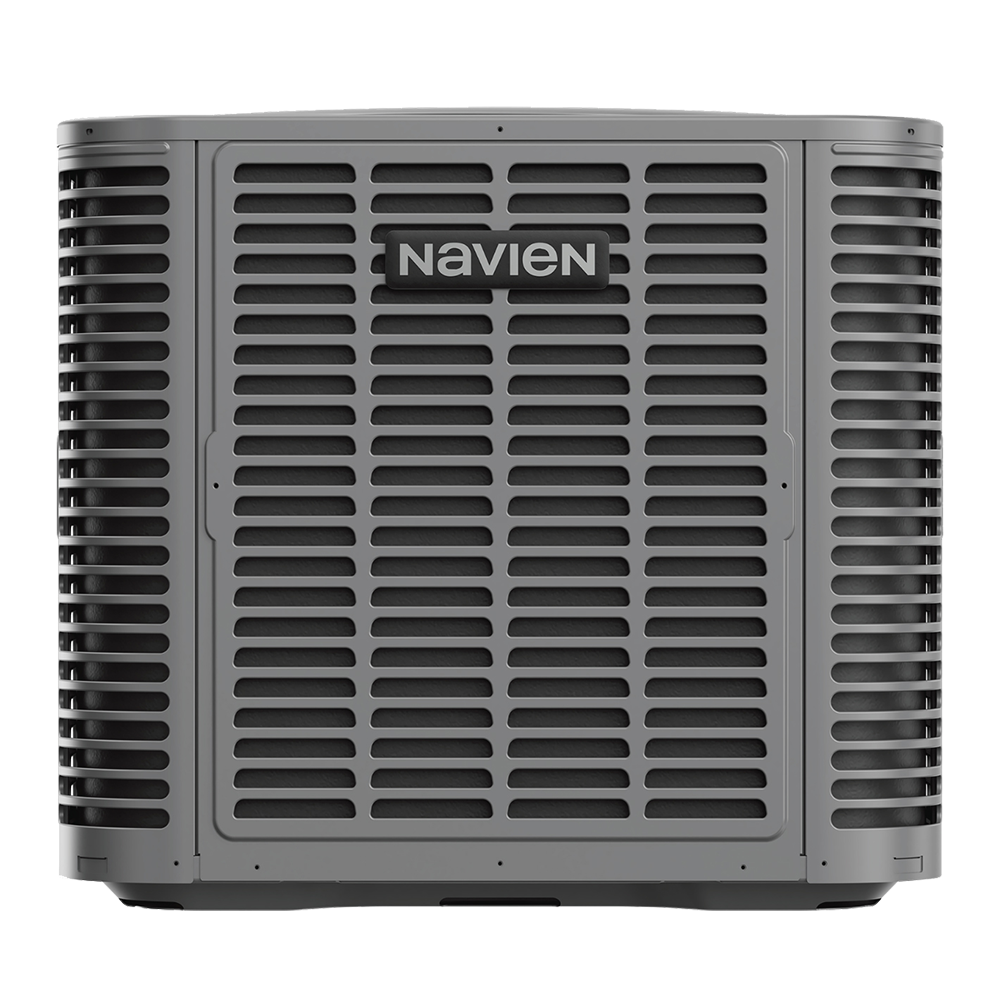

The Navien NAZ-17V36 Air-to-Air Heat Pump is a high-efficiency heating and cooling solution engineered for year-round comfort, energy savings, and reliable all-season performance. Designed with advanced inverter technology and environmentally friendly R-454B refrigerant, this premium heat pump system delivers efficient temperature control while reducing environmental impact.
With efficiency ratings up to 19.5 SEER2, the NAZ-17V36 helps homeowners lower energy consumption without sacrificing comfort. Its inverter-driven compressor with Capacity Matching Technology (CMT) automatically adjusts output based on demand, helping maintain consistent indoor temperatures and quieter operation.
Built to perform in challenging climates, the system operates in outdoor temperatures ranging from -4°F to 124°F, making it an excellent solution for both heating and cooling applications throughout Metro Vancouver and surrounding areas.
The Navien NAZ-17V36 Air-to-Air Heat Pump is designed to provide consistent indoor comfort while maximizing energy efficiency. Its inverter-driven compressor continuously adjusts heating and cooling output to match real-time demand, reducing energy waste and improving comfort stability.
The use of R-454B refrigerant offers a lower global warming potential (GWP) compared to older refrigerants, making the system a more environmentally responsible HVAC solution.
Dual fuel compatibility also allows the heat pump to integrate with compatible furnace systems for improved performance during colder weather conditions. Additionally, Bluetooth-enabled diagnostics and system monitoring simplify service and maintenance for both homeowners and technicians.
| Item | NAZ-17V36 |
| Unit Dimensions | 29.1" W x 25.0" H x 29.1" D (74.0cm W x 63.5cm H x 74.0cm D) |
| Packing Dimensions | 29.9" W x 29.4" H x 29.9" D (75.9cm W x 74.6cm H x 75.9cm D) |
| Net Weight | 142 lbs (64.4 kg) |
| Gross Weight | 171 lbs (77.6 kg) |
| Thermostat Type | Conventional 1- or 2-stage |
| Electrical Data | 230 – 1 – 60 |
| Minimum Circuit Ampacity | 20 Amps |
| Maximum Overcurrent Protection | 25 Amps |
| Voltage Range | 187 - 253 V |
| Compressor Frequency | 18 - 100 Hz |
| Rated Current (RLA) | 13 Amps |
| LRA | 52 Amps |
| Fan Motor Power Supply | DC |
| Fan Motor RLA | 1/7 |
| Maximum Fan Speed | 1,100 RPM |
| Fan Motor FLA | 1.1 Amps |
| Coil Rows | 2 |
| Tube Outside Diameter | 9/32 |
| Tube Pitch x Row Pitch | 0.53 inch x 0.83 inch (13.5 mm x 21.1 mm) |
| Refrigerant Type | R-454B |
| Liquid Line OD | 3/8 (9.5) |
| Vapor Line OD | 3/4 (19) |
| Refrigerant Charge | 116.4 oz (3,299.9 g) |
| Expansion Valve | EEV |
| Cooling Operating Temperature | 5 - 124 °F |
| Heating Operating Temperature | -4 - 75 °F |
| SEER2 | Up to 19.5* |
| HSPF2 | Up to 9.3* |
| Certifications | AHRI |
*With select AHRI matched indoor equipment.
Navien reserves the right to change specifications at any time without prior notice.
| Application | Coverage Type | Warranty Period |
| Residential2 | Parts1 – Registered3 | 10 Years |
| Residential2 | Parts1 – Non-Registered4 | 5 Years |
| Residential2 | Labor | 90 Days |
| Commercial | Parts1 | 1 Year |
Definitions:
1 Parts – Refers to all internal functional components of the unit, except for the Combustion Heat Exchanger.
2 Residential – Refers to a single-family residential application.
3 Registered – Refers to coverages for units registered within 60 days of the commencement date.
4 Non-Registered – Refers to coverages for units registered 61 days or more after the commencement date.
Pacific Blue Mechanical provides complete supply, installation, repair, and maintenance services for the Navien NAZ-17V36 Air-to-Air Heat Pump throughout Metro Vancouver. Whether you are upgrading an older HVAC system or installing a new high-efficiency heat pump, our licensed HVAC technicians provide professional, code-compliant installation and long-term support.
If requested, we can source and supply the NAZ-17V36 directly and manage the full installation process including equipment setup, refrigerant line installation, electrical connections, thermostat integration, commissioning, airflow balancing, and system optimization.
We also provide ongoing maintenance and repair services including diagnostics, seasonal tune-ups, refrigerant checks, airflow testing, component replacement, electrical troubleshooting, and preventative maintenance to help maximize efficiency and extend system lifespan.
If your heat pump is experiencing issues such as poor heating or cooling performance, unusual noises, airflow problems, error codes, or reduced efficiency, our experienced technicians can quickly diagnose the issue and recommend the most effective repair solution.
The Navien NAZ-17V36 Air-to-Air Heat Pump is a high-efficiency air-to-air heat pump designed for residential heating and cooling.
This system uses environmentally friendly R-454B low GWP refrigerant.
The system offers efficiency ratings up to 19.5 SEER2.
Yes. It is designed to perform in outdoor temperatures ranging from -4°F to 124°F.
Yes. The NAZ-17V36 is dual fuel compatible for enhanced heating flexibility and cold-weather performance.
